HMT RM 65 Hydraulic clamping Radial Drill Machine - Details

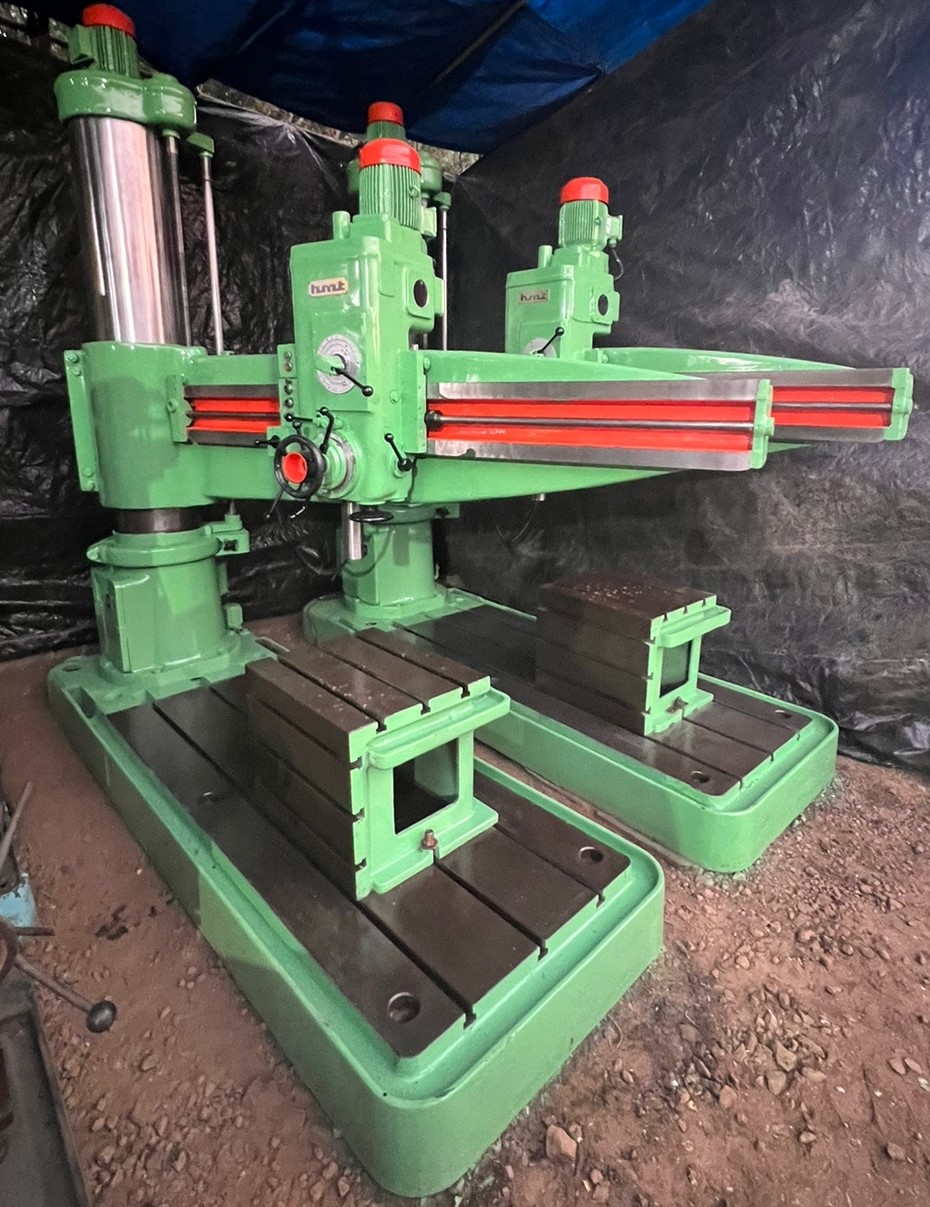

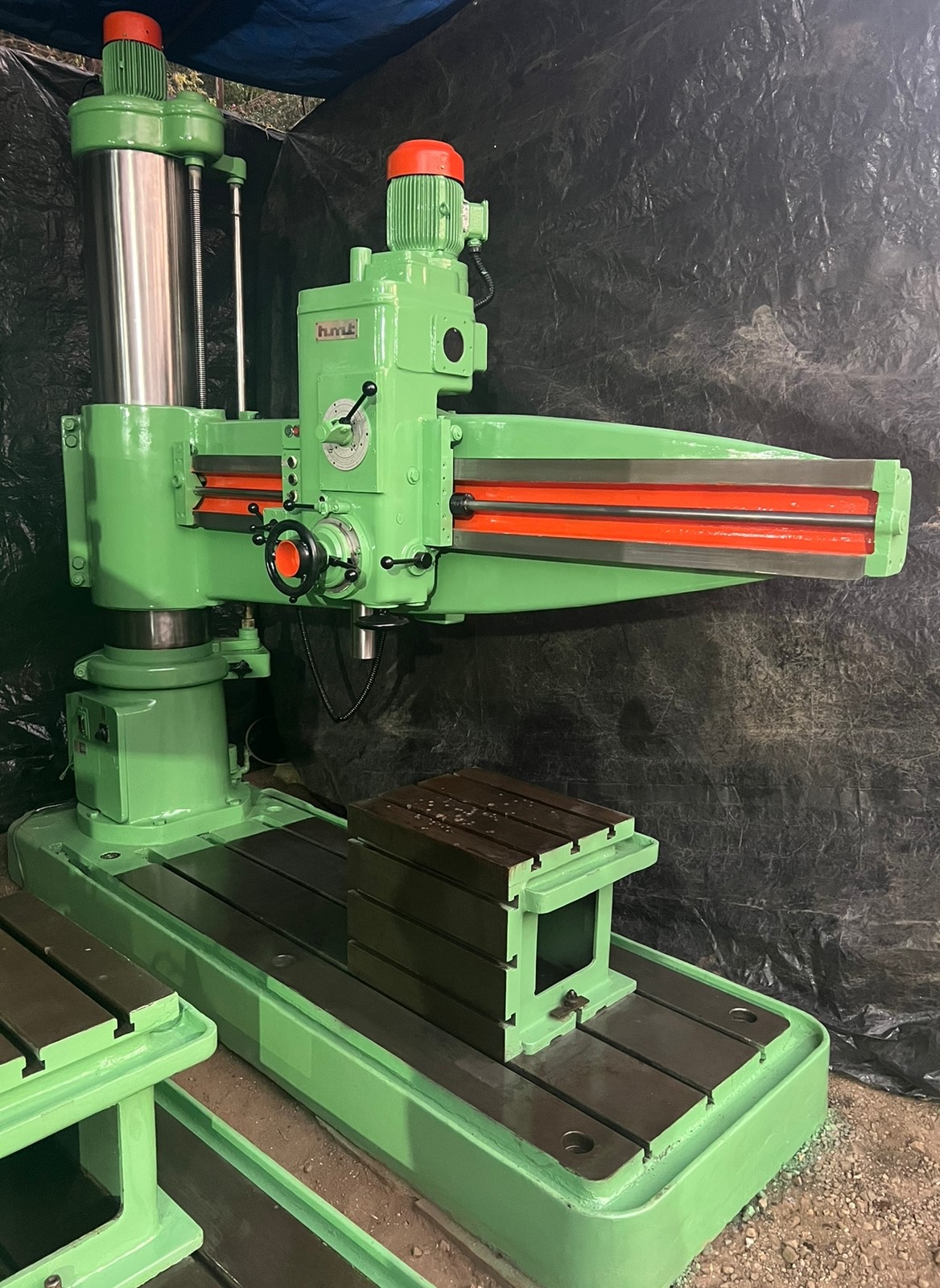

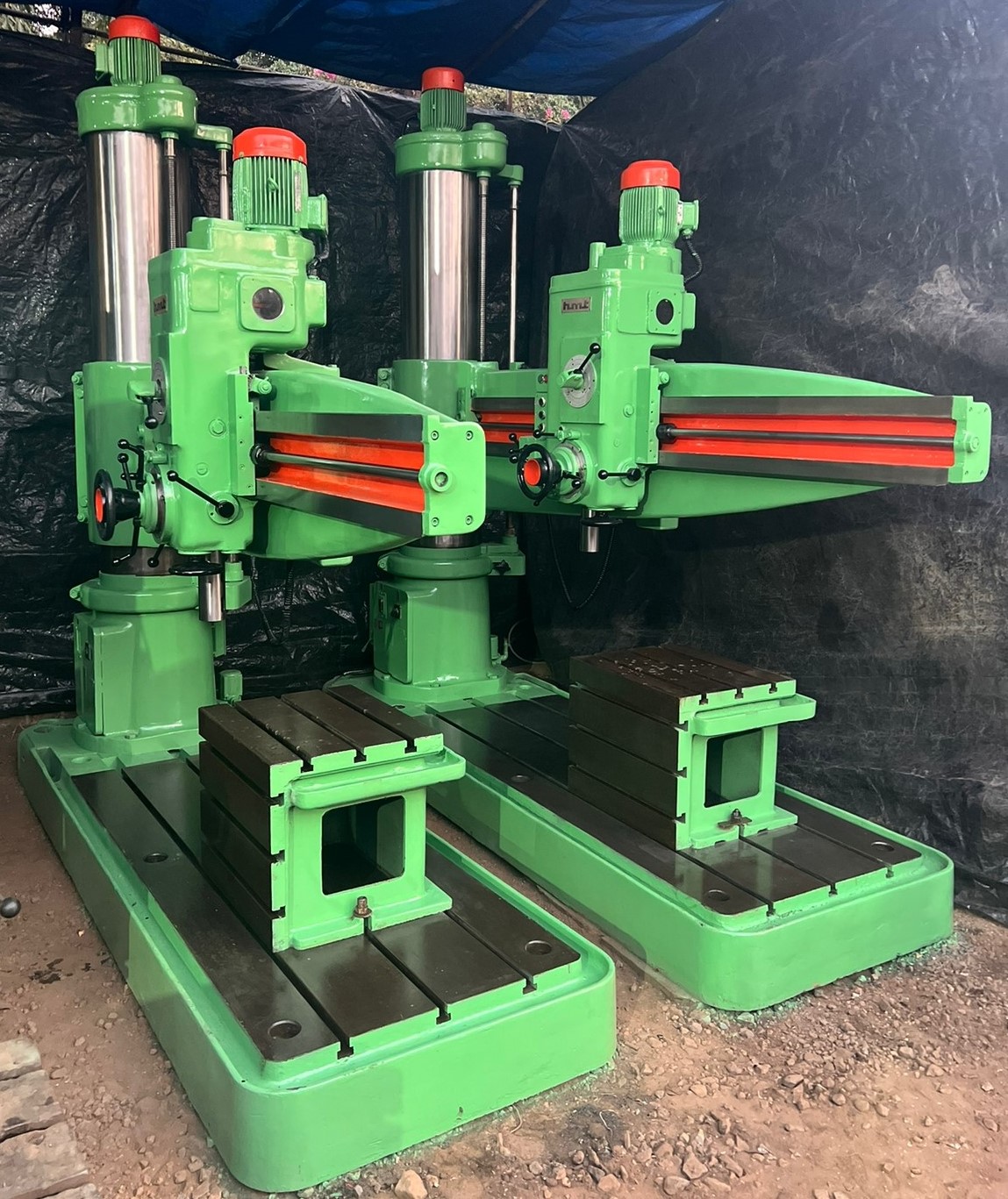

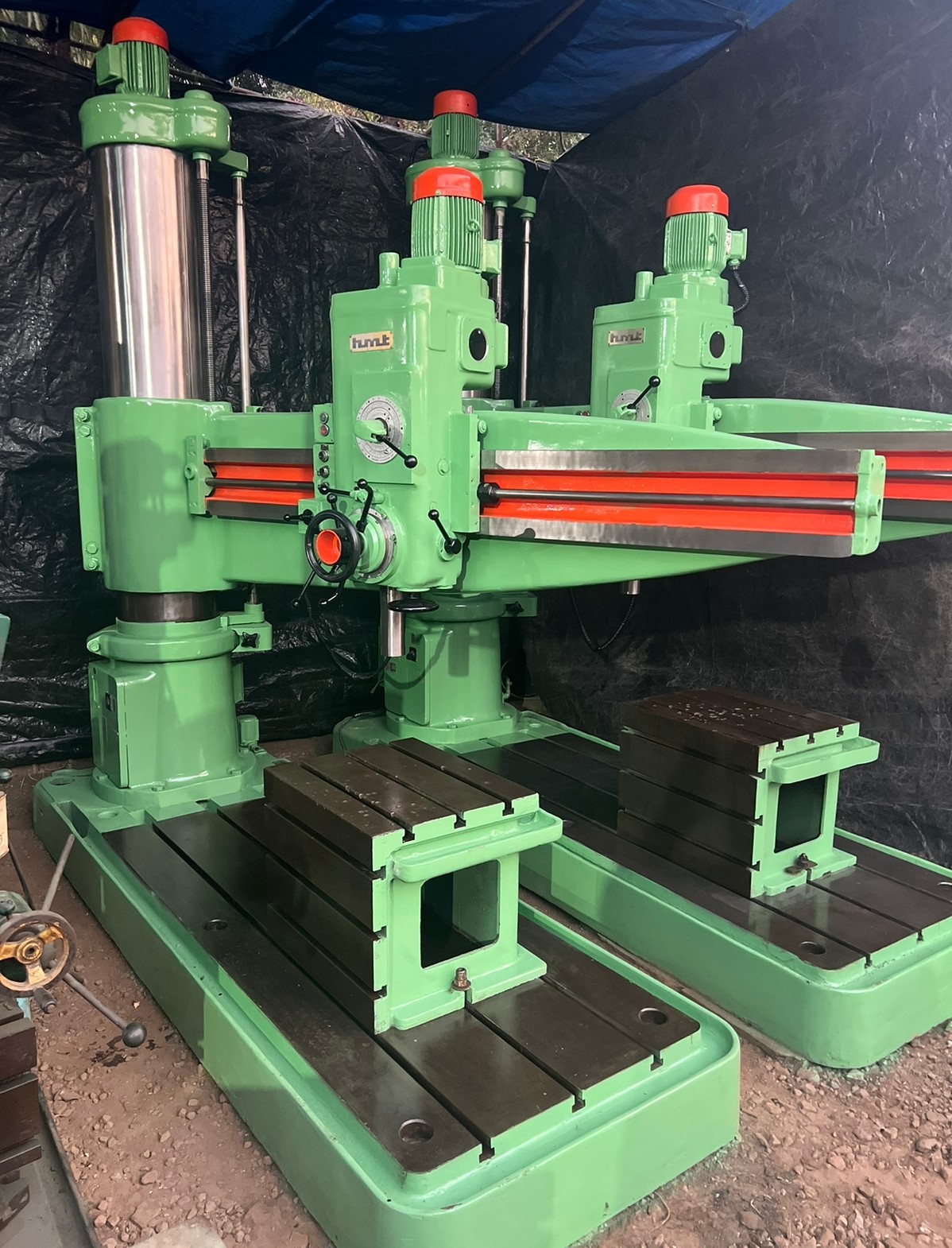

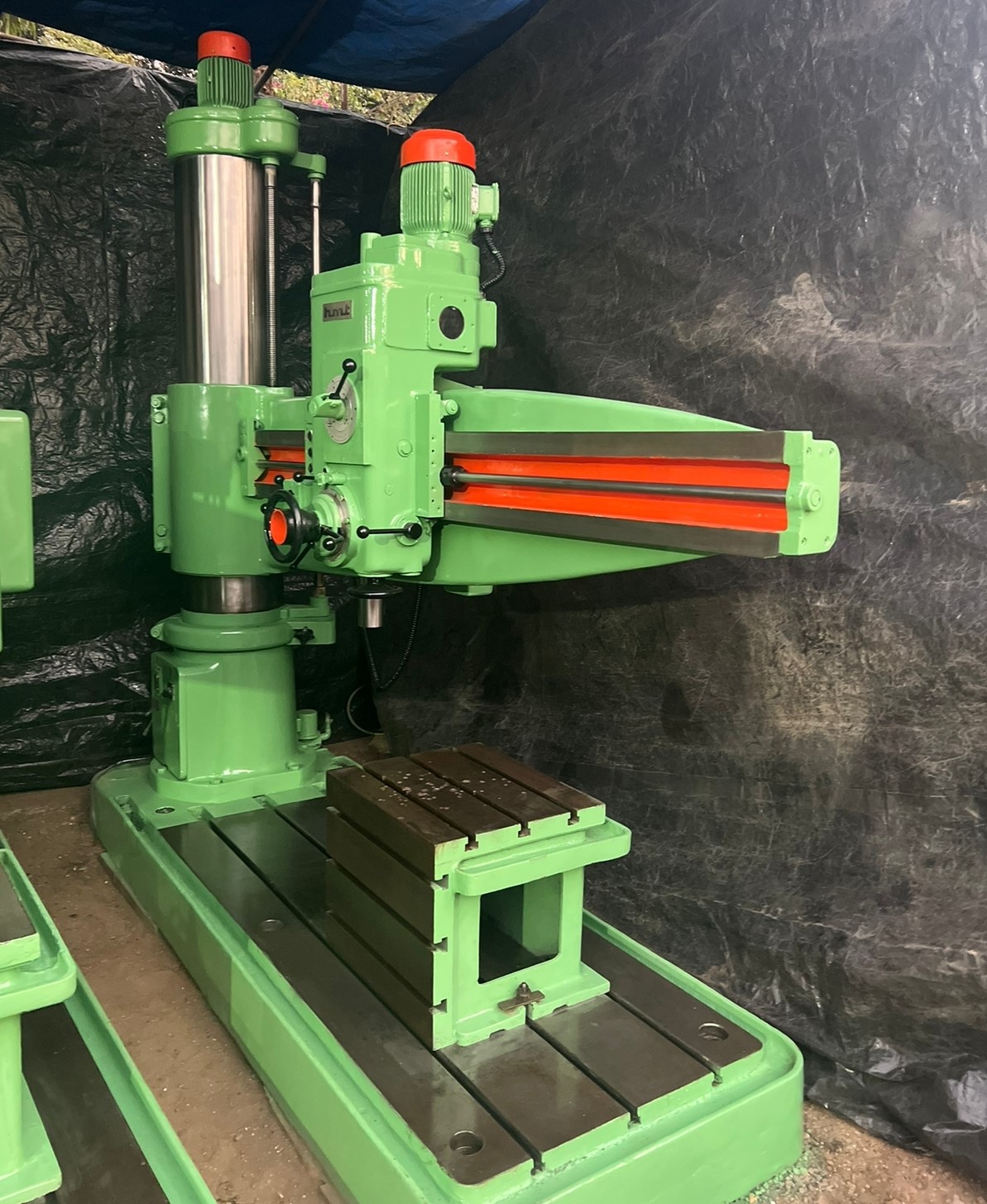

HMT RM 65 Hydraulic clamping Radial Drill Machine

Drilling in solid 60mm
Drilling in solid with reduced speeds and feeds 85mm
Tapping                   70mm
Max drilling radius- 2350mm
Min drilling radius- 550mm
Diameter of sleeve- 400mm
Max distance
Sleeve to spindle- 2150mm
Min distance
Sleeve to spindle- 350mm
Spindle traverse- 325mm
Max distance
Base plate to spindle- 1645mm
Min distance
Base plate to spindle- 380mm
Working surface of base plate
Length- 2330mm
Width- 1000mm
Standard Box table
Length- 600mm
Width- 500mm
Height 500mm
Drilling spindle
Morse taper in spindle nose- MT5
Spindle speeds- 12NO
Range of speeds
Standard- 40 rev /1800 min
On request 50rev/2240min
Feeds- 6NO
Range of feeds -0.125-1.25-mm/rev
Max drilling thrust 1650kg
Drilling head motor at 1500/3000 rpm 3.6/4.5kw
Elevating motor 3kw
Coolant pump motor 0.11kw

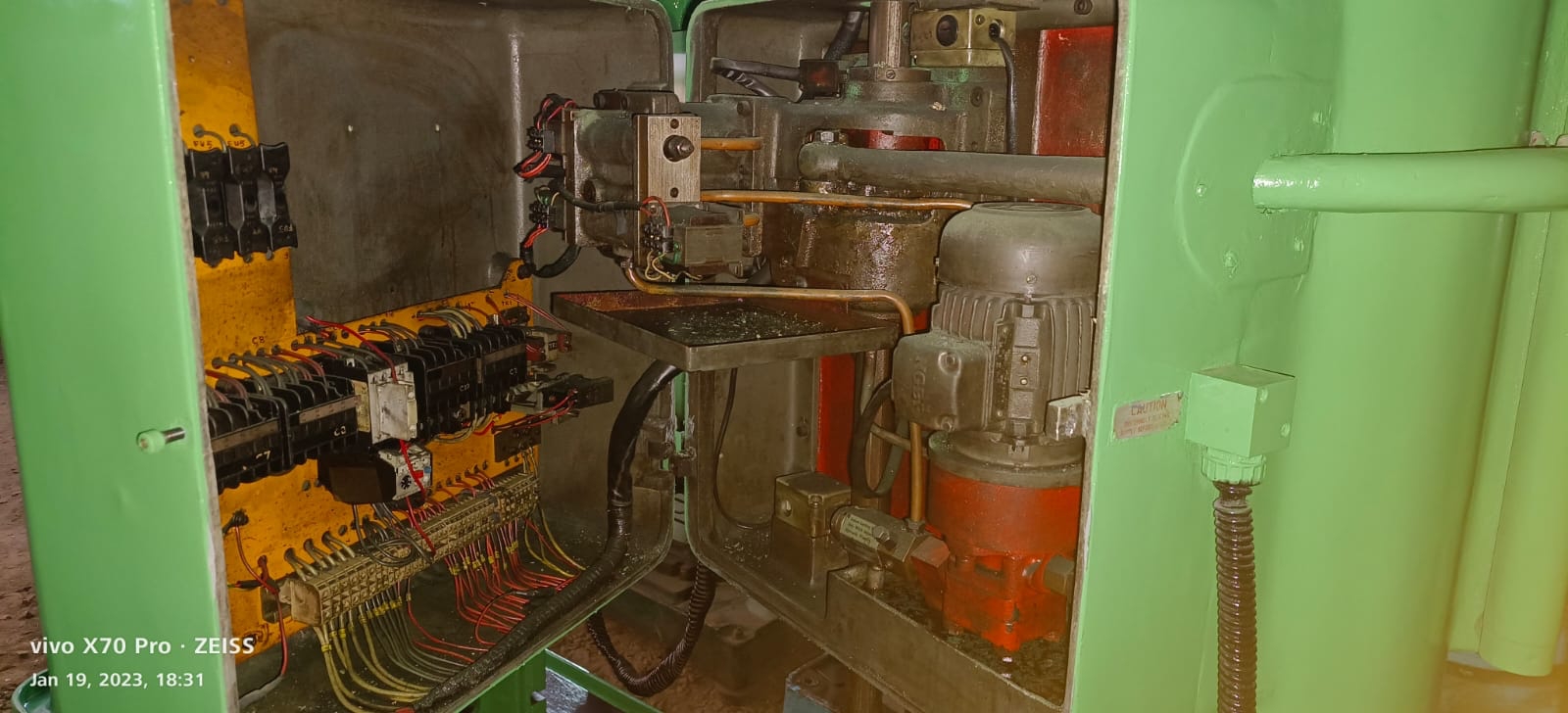

Hydraulic pump motor 0.37kw
Approx. weight of machine 5mt
