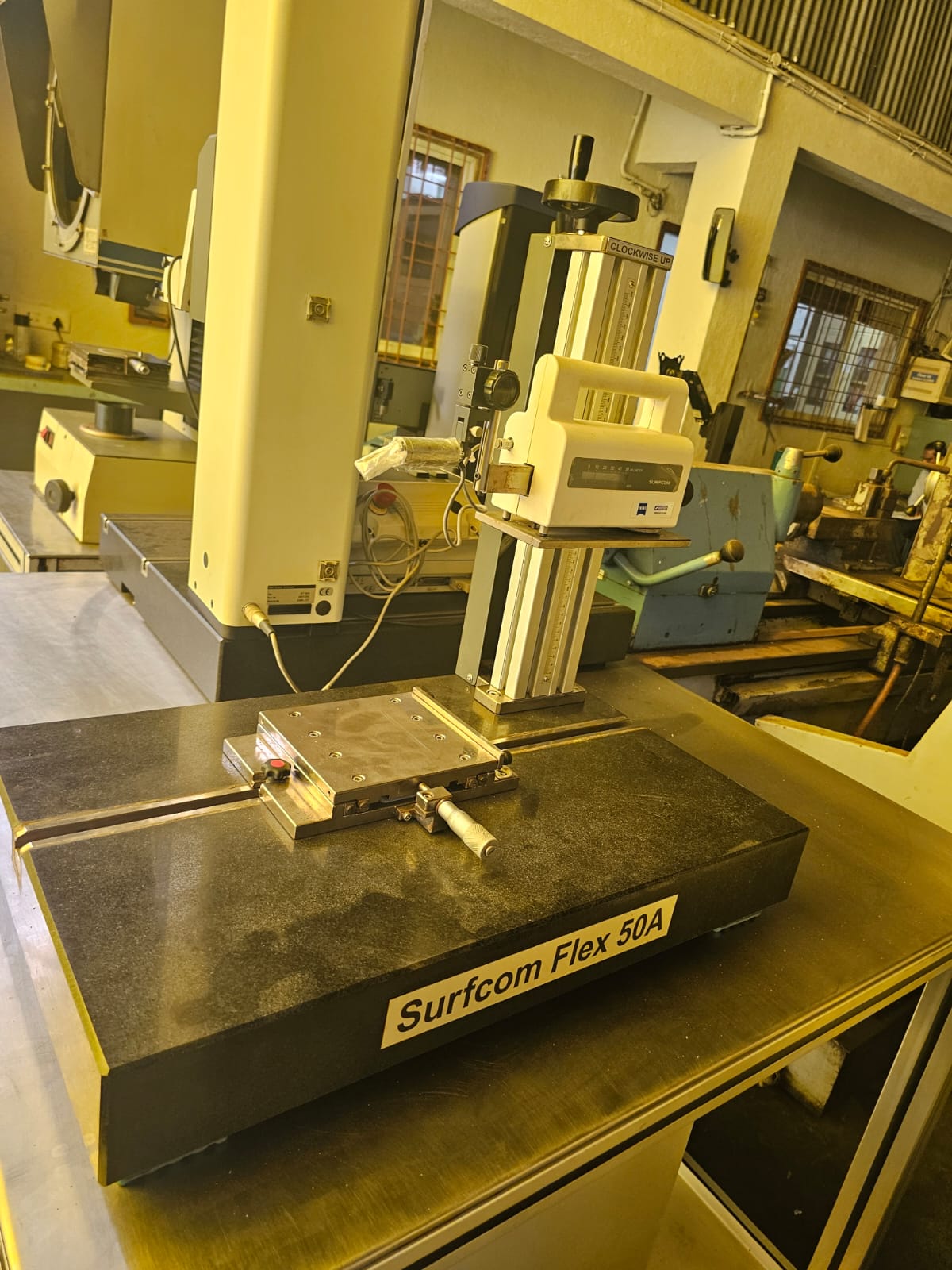

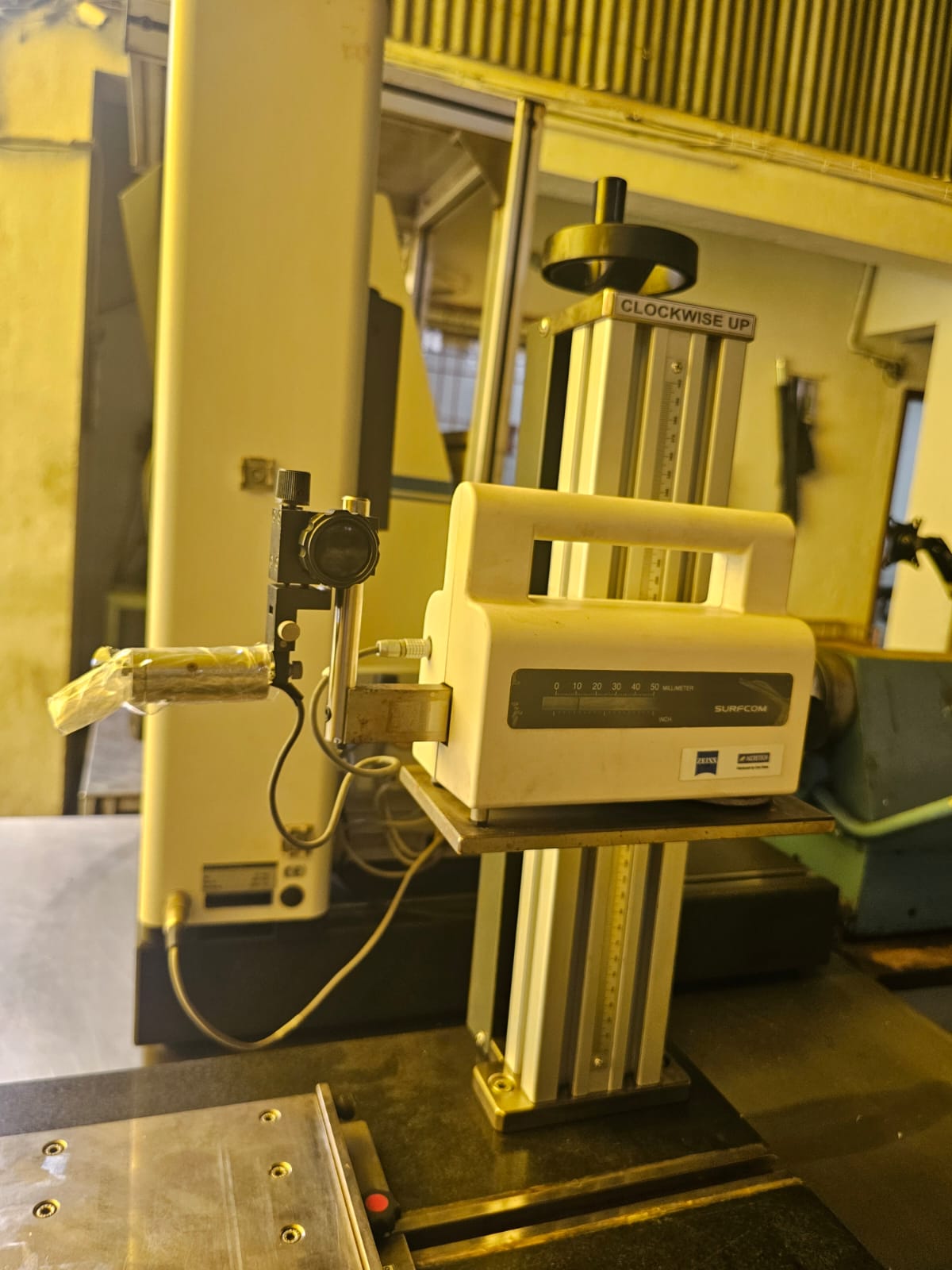

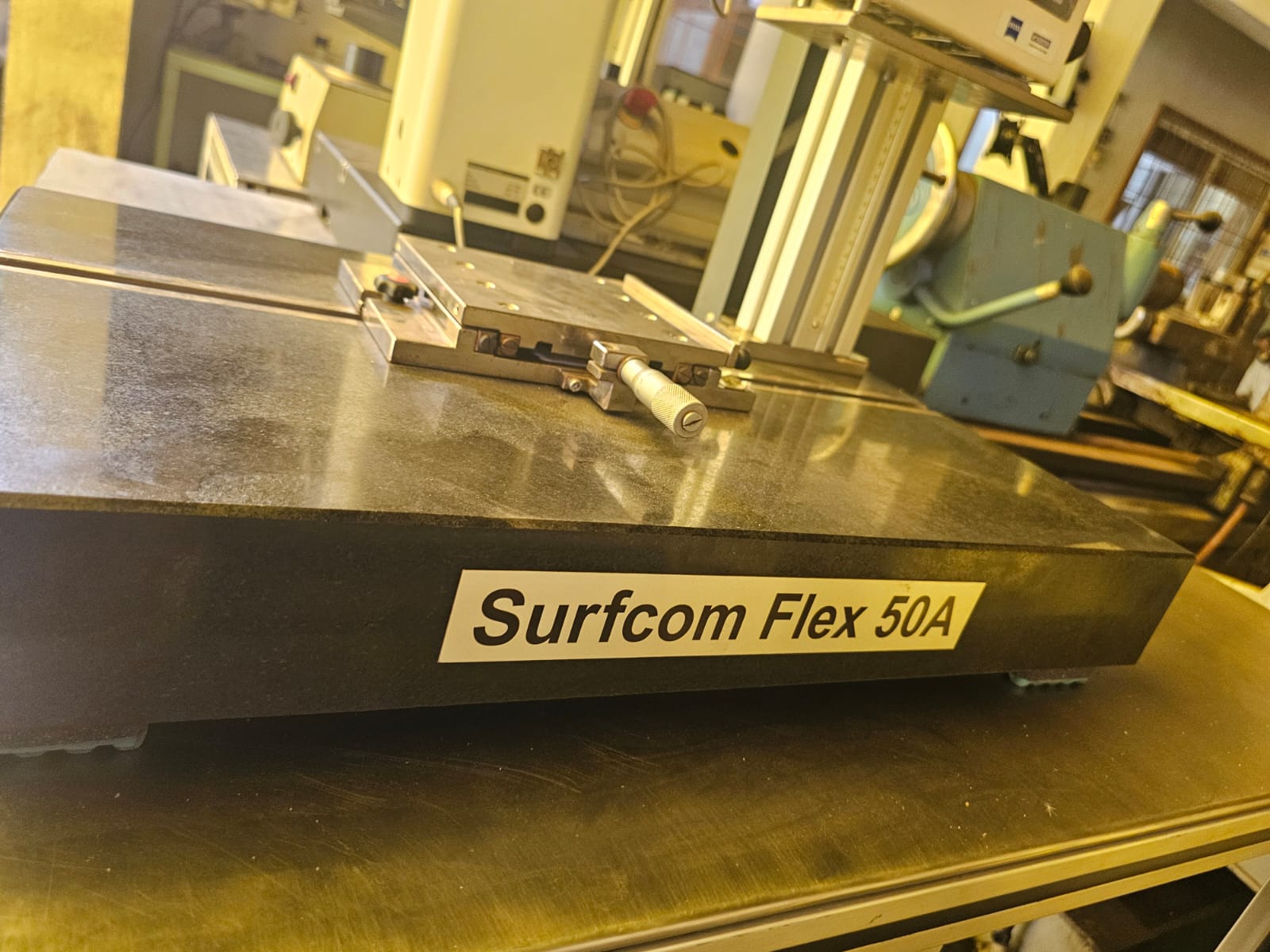

Model: Surfcom Flex 50A
Type: Portable surface roughness tester
Applications: Production, incoming goods, final inspection in industries like automotive, mechanical engineering, and medical technology.
Measurement Capabilities:
Measurement Method: Skid/Skidless measurement
Measurement Range: 50 mm (with the 50 mm tracing driver)
Measurement Speed: 0.15 mm/s to 1.5 mm/s
Stylus: Diamond or tungsten carbide tip, various radii available
Measuring Force: 0.75 mN or less
Cut-off: Gaussian filter, 2RC filter (phase compensation type), 2RC filter (non-phase compensation type)
Evaluation Length: 0.1 mm to 50 mm
Parameters: Ra, Rz, Rq, Rt, and others
Hardware:
Tracing Drivers: 35B, 40A, 45A, or 50A, selectable depending on the measurement task
Display: 7-inch touch panel (in some models)
Printer: Built-in thermal printer
Power: Rechargeable battery (charged via AC adapter), approximately 600 measurements per full charge
Communication: Mini USB connector for USB communication and USB memory connector
Dimensions: 132 mm x 58 mm x 214 mm (Amplifier)
Weight: Approximately 90g (Amplifier)
